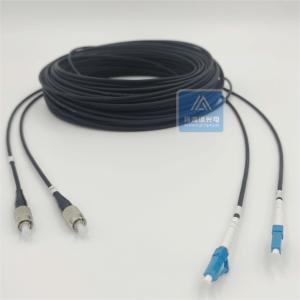

Duplex Armored Patch Cord 40m FC-LC Connector 5mm Black LSZH FTTH Rodent Resistant F
Duplex Armored Patch Cord 20m FC-LC Connector 5mm Black LSZH FTTH FTTX Rodent Resistant Flame Resistant,
2 Cores Spiral Armored Patch Jumper, Micro Armored Fiber Cable Assembly
The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
The spiral armoured cable with good tension and pressure performance.
The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.
Parameter
| Item | 2 Cores Armored Patch Cord |
| Fiber | G652D |
| Cable diameter | 5.0mm |
| Cable jacket | LSZH |
| Length | 40M |
| Insert loss | ＜ 0.30dB |
| Return loss | ≥50dB (UPC) |
| Temperature | -40℃~80℃ |
| Fan-out cable length | 50cm |
| Cable Grade | The following standard can be choosen, IEC60332-1-2, IEC60332-3-24, Eca, Dca, Cca, OFCR, etc. Comply with ROHS |

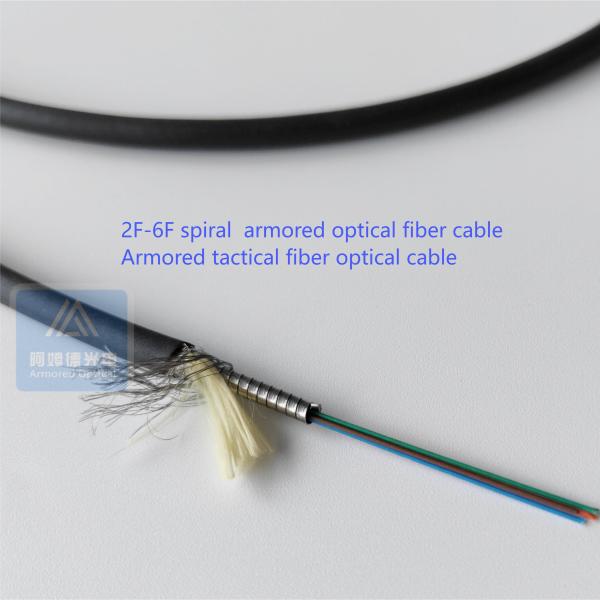

Cable show
Production show
Service
- 100% testing before shipment.
- Good prices can be provided.
- Our products can be customized according to customers’ requirement.
Feature
- Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
- It has greater durability in resisting pulls, strains and impacts from cabling installation.
- Different jacket material fit for different environments.
- UV-resistant
- It's designed for harsh environments where regular fiber optical cables couldn't work well.
Applications
- Used in FTTX, from residence to data center and cabling level and vertical
- Used in communications in data center
- Used in the open field, connections between optical equipment.
